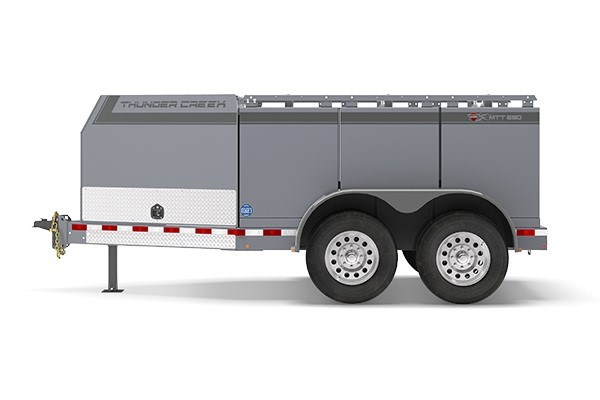

Thunder Creek Trailers MTT690

TRAILER FEATURES

• Dual Coat Grey Polyurethane Paint
• Diamond Plate Rock Guard on Fenders & Frame
• Replaceable Bolt-on Fenders
• Lockable, Hatch-Style, Weather-Sealed Doors
• Dexter® Torsion Axles and EZ Lube Hubs
• Self-Adjusting Electric Brakes
• Breakaway Safety System
• 10-Ply Tires, ST235/80R16, Load Range E with
• Steel Wheels
• 7,000 lb. Enclosed Jack
• Safety Tow Chains
• Adjustable Height 2 5/16” Ball Hitch
• 7.5” x 1/4” Formed Frame
• Reflective Tape
• Automatic Interior LED Lighting
• Wiring Wrapped in Protective Braid
• Fire Extinguisher

TANK AND PUMPING SYSTEM

• 115 Gallons per Tank, 4, 6, or 8 Tanks
• 7 Gauge, Sloped Floor Steel Tanks
• Tank Vents
• SpinsecureTM Locking Fuel Caps
• 12V Deep Cycle Marine Battery
• 12’ Power Cables
• 35’ x 1” Retracting Hose Reel
• Auto-Trip Nozzle
• Extruded Aluminum Pump Manifold
• 25 GPM Industrial Grade 12V Pump
• Sight Fuel Level Gauges
• 10 Micron Fuel Filter

OPTIONS
Items with + can be added any time to expand the functionality of the trailer as your operation grows.

SIGNATURE PACKAGE

• Gas Powered Pump Upgrade
• 100 Gallon DEF Tank, Pump and 35’ Reel +
• Aluminum Wheels
• 14-Ply Tires, ST235/85R16, Load Range G
• Electric/Hydraulic Jack +
• Solar Battery Maintainer +
• Electric Valve Manifold for Automatic Shut-Off
• Stationary Side Steps +

ADDITIONAL OPTIONS

• WorkSight Light Tower +
• Spare Tire Kit with 10 or 14-Ply Tires +
• Digital or Analog Fuel Meter +
• 50’ Fuel Hose Reel Upgrade
• 125’ Fuel Hose Reel Upgrade
• 200’ Fuel Hose Reel Upgrade
• 50’ Static Discharge Reel +
• Spill Containment Kit +
• Digital DEF Meter +
• 50’ DEF Hose Reel Upgrade
• 120V DEF Tank Heater +
• Fuel Custody Transfer Meter+Ticket Printer
• 2 Stage Filter System (10+4 Micron) Upgrade
• Pintle Hitch +
• Compressed Air Connection at Hitch
• Custom Color

REAR UTILITY BOX OPTIONS

• Rear Utility Box (41.75”d x 58.75”w x 49.75”h) +
• Five Drawer Tool Chest for Utility Box +
• Two Drawer Low Boy Tool Chest +
• Can+Towel Holder +
• Work Bench with Vise +
• 35 lb. Pneumatic Grease Kit +
• Welder+Comp+Gen with 50’ Air/Elec. Combo Reel +
• Comp+Gen with 50’ Air/Elec. Combo Reel +
• Air Compressor with 50’ Air Hose Reel +
• 20’ Weld Cable Extension +
• 50’ Weld Cable Extension +
