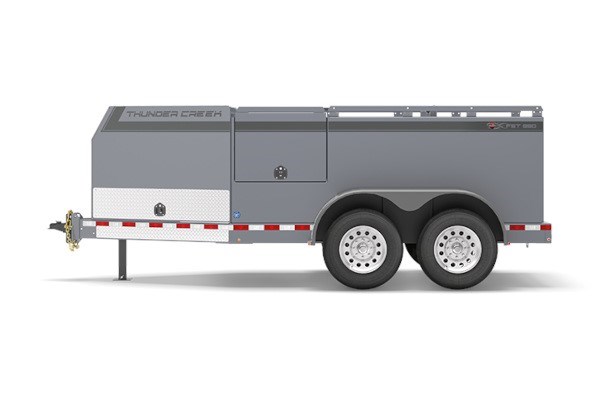

Thunder Creek Trailers FST 990

TRAILER FEATURES

• Dual Coat Grey Polyurethane Paint
• Diamond Plate Rock Guard on Fenders and Frame
• Replaceable, Bolt-on Fenders
• Lockable Hatch-Style, Weather-Sealed Doors
• Dexter® Torsion Axles and EZ Lube Hubs
• Electric Brakes with Breakaway Safety System
• 10-Ply Tires, ST235/80R16, Load Range E with Steel Wheels
• 7,000 lb. Enclosed Jack
• Safety Tow Chains
• Adjustable Height 2 5/16” Ball Hitch
• 7.5” x 1/4” Formed Frame
• Reflective Tape
• Automatic Interior LED Lighting
• Wiring Wrapped in Protective Braid
• Fire Extinguisher
• DOT Placards

TANK AND PUMPING SYSTEM
The FST features a self-contained, ergonomic pump enclosure to house the fuel pumping system. This
compartment features automatic interior LED lighting and locking, weather-sealed door.

• 7 Gauge Vented Steel Tank
• Full Height Offset Baffles
• Double Welded Seams
• Left and Right SpinsecureTM Fuel Caps
• 6” Fuel Sump with 1/2” Drain Plug
• 12V Deep Cycle Marine Battery
• 12’ Power Cables
• 35’ x 1” Retracting Hose Reel
• Auto-Trip Nozzle
• 25 GPM Industrial Grade 12V Pump
• Sight Level Gauges
• 10 Micron Fuel Filter

OPTIONS
Items with + can be added any time to expand the functionality of the trailer as your operation grows.

SIGNATURE PACKAGE

• Gas Powered Pump Upgrade +
• 100 Gallon DEF Tank, Pump and 35’ Reel
• Aluminum Wheels
• 14-Ply Tires, ST235/85R16, Load Range G
• Electric/Hydraulic Jack +
• Solar Battery Maintainer +
• Stationary Side Step* + *Not available on FST500 or FST500UB

PRO PACKAGE UPGRADE
Can be Added with Purchase of Signature Package

• Rear Utility Box (41.75”d x 58.75”w x 49.75”h) +
• Comp+Gen with 50’ Air/Elec. Combo Reel +
• Five Drawer Tool Chest for Utility Box +
• Can+Towel Holder +

ADDITIONAL OPTIONS

• WorkSight Light Tower +
• Spare Tire Kit with 10 or 14-Ply Tires +
• Digital or Analog Fuel Meter +
• 50’ Fuel Hose Reel Upgrade
• 50’ Static Discharge Reel +
• Spill Containment Kit +
• Digital DEF Meter +
• 50’ DEF Hose Reel Upgrade
• 120V DEF Tank Heater +
• 2 Stage Filter System (10+4 Micron) Upgrade
• 30 Gallon Auxiliary Oil Tank and 3 GPM Pump
• Gear Drive 8 GPM Pump Upgrade for Oil Tank
• Five Drawer Tool Chest for Front Enclosure
• Pintle or Bumper Hitch +
• Gooseneck Hitch
• Custom Color

REAR UTILITY BOX OPTIONS

• Rear Utility Box (41.75”d x 58.75”w x 49.75”h) +
• Five Drawer Tool Chest for Utility Box +
• Two Drawer Low Boy Tool Chest
• Can+Towel Holder +
• Work Bench with Vise +
• 35 lb. Pneumatic Grease Kit +
• Welder+Comp+Gen with 50’ Air/Elec. Combo Reel +
• Comp+Gen with 50’ Air/Elec. Combo Reel +
• Air Compressor with 50’ Air Hose Reel +
• 20’ or 50’ Weld Cable Extension +
