Grouser Heavy-Duty Dozer Blade

New Products / Grouser / Dozer Blades / Heavy-Duty Dozer Blade

Double tap to zoom

Heavy-Duty Dozer Blade

Dozer Blades

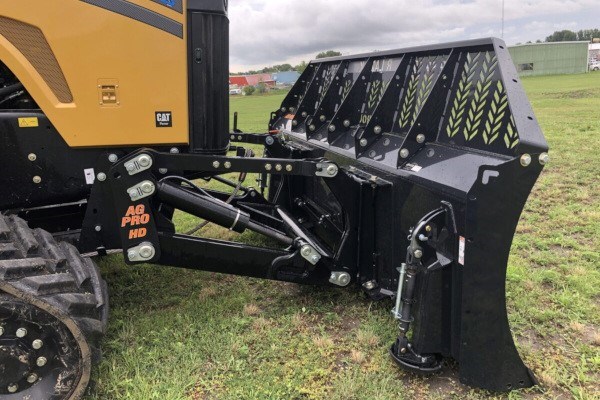

Our Heavy-Duty (HD) Dozer Blades are designed for the toughest conditions and materials, and our custom designs ensure a precise match to your specific needs.

These blades incorporate a heavier gauge of material, larger hydraulics, and greater capacity for taking on high-intensity, long-hour construction and earthmoving jobs.



Features

  • Structural upgrades for high hour/severe applications
  • 5″ Lift Cylinders
  • Larger abrasion resistant hydraulic hoses
  • Vertical paralift design   Grouser-Paralift-Advantage
  • Under tractor clearance: 20″–25″
  • Single lever quick attach blade system
  • Reinforced tilt cylinder mounting
  • Hardened pins in all locations
  • 3/8″ grade 80 push plate added to moldboard
  • Reversible cutting edge: 3/4″ x 8″
  • End Bits

Specifications

Specifications

  • Reversible cutting edge: 3/4″ x 8″
  • Blade width: 12’–20′
  • Blade height: 48″
  • Lift height: 54”-56″
  • Power pitch
  • Lift cylinders: (2) 5″ x 18″
  • Angle cylinder: (2) 4″ x 43.5″
  • Tilt cylinder: (2) 4″ x 12″
  • Blade angles: 30° right or left
  • Blade tilts: 10°

Attachments/Options

  • Top extension
  • Power pitch
  • Serrated cutting edge
  • U-blade extensions
  • Extended wear skid shoe
  • Joystick kit
  • Custom variations available

Accessories/Attachments

  • Top extension
  • Power pitch
  • Serrated cutting edge
  • U-blade extensions
  • Extended wear skid shoe
  • Joystick kit
  • Custom variations available
