Grouser AG240 Dozer Blade

New Products / Grouser / Dozer Blades / AG240 Dozer Blade

Double tap to zoom

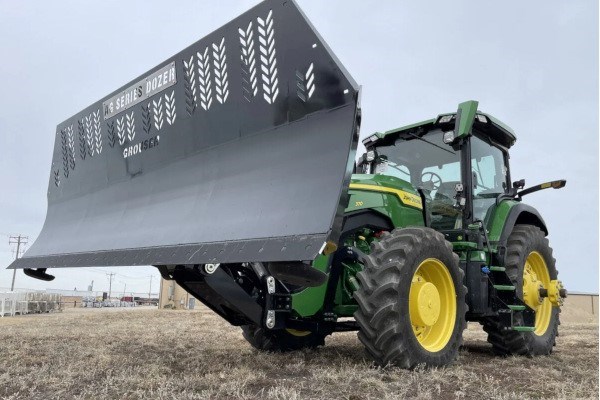

AG240 Dozer Blade

Dozer Blades

The latest AG240 Dozer Blade gives you increased lift height, ground clearance and in-ground depth.  This is the ideal blade for 150–500 horsepower row crop tractors that have long travel front suspensions.  The AG240 is available in 4 or 6-way configurations to give you exceptional versatility and ease of use in the yard and the field.



Features

  • Used with the Grouser FH440XR Front Hitch
  • Single lever quick attach blade
  • Available with hydraulic angle and hydraulic tilt
  • Easy adjustable skid shoes with replaceable wear pads
  • Easy access hydraulic couplers
  • Custom name plate
  • Extended Range Vertical Paralift lift system

Specifications

Specifications

  • 22°-29° approach angle
  • 96.5″-118″ from cutting edge to front axle
  • 42″-48″ lift height
  • 16.5″-21.5″ in-ground depth
  • 18″-20″ undercarriage clearance
  • Lift cylinder: 5″ x 12″
  • Reversible cutting edge: 5/8″ x 6″
  • Widths: 10′, 12′, 14′, 16′
  • Blade height: 60″
  • Moldboard: 3/16″ thick
  • Angle cylinders: (2) 5″ x 12″
  • Tilt cylinder: 4″ x 8″
  • Blade angles: 30° right or left
  • Blade tilts: 10°

Attachments/Options

  • 1-Foot End Extensions
  • Top Extension for End Extensions
  • Box End Plates – Straight
  • Box End Plates – Angled
  • Top Extension for End Plates
  • LED Light Kit
  • Additional 12″ Top Extension
  • Weight Carrier Bracket
  • Single Lever Hydraulic Multi-Coupler
  • 4-Point to CAT3N Adapter

Accessories/Attachments

  • Blade End Extensions
  • Box End Plates – angled
  • Box End Plates – straight
  • Top Extension for Box End Plates
  • LED Light Kit
  • Additional 12″ Top Extension
  • Weight Carrier Bracket
  • Single Lever Hydraulic Multi Coupler
  • 4-Point to CAT3N Adapter
